Aluminum direct fit radiators provide increased cooling over original copper radiator. Designed for performance vehicles, features include machined billet aluminum filler necks, fully welded construction and two rows of large 1" tubes properly spaced for maximum airflow and cooling on the street, even at lower speeds. Built-in automatic transmission coolers. O.E. fan shrouds may require modification for installation.

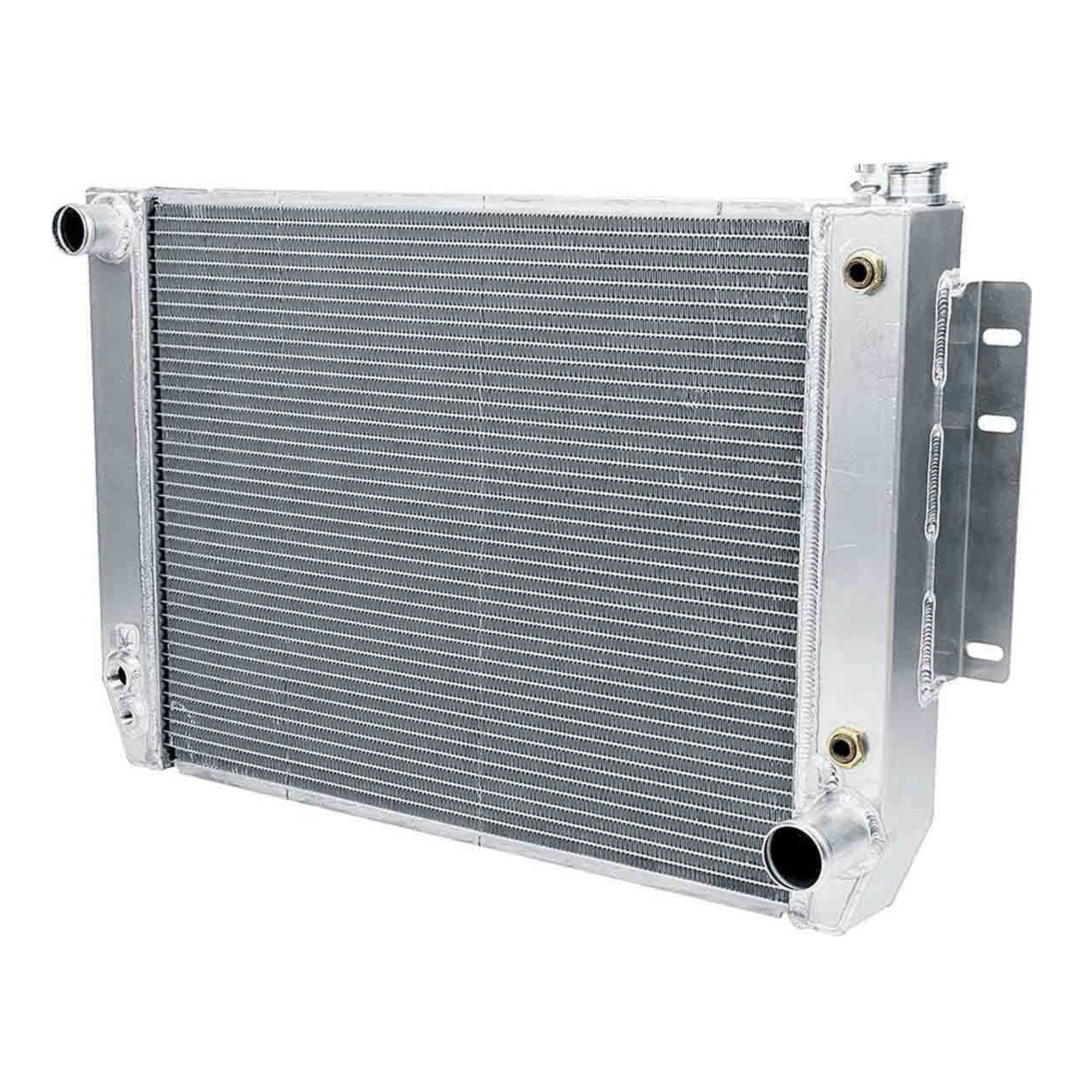

ALL30300.........1967-69 GM F-Body (Camaro and Firebird) PS Outlet, DS Inlet, 31"W x 19-1/2"H overall, 23"W x 18"H core

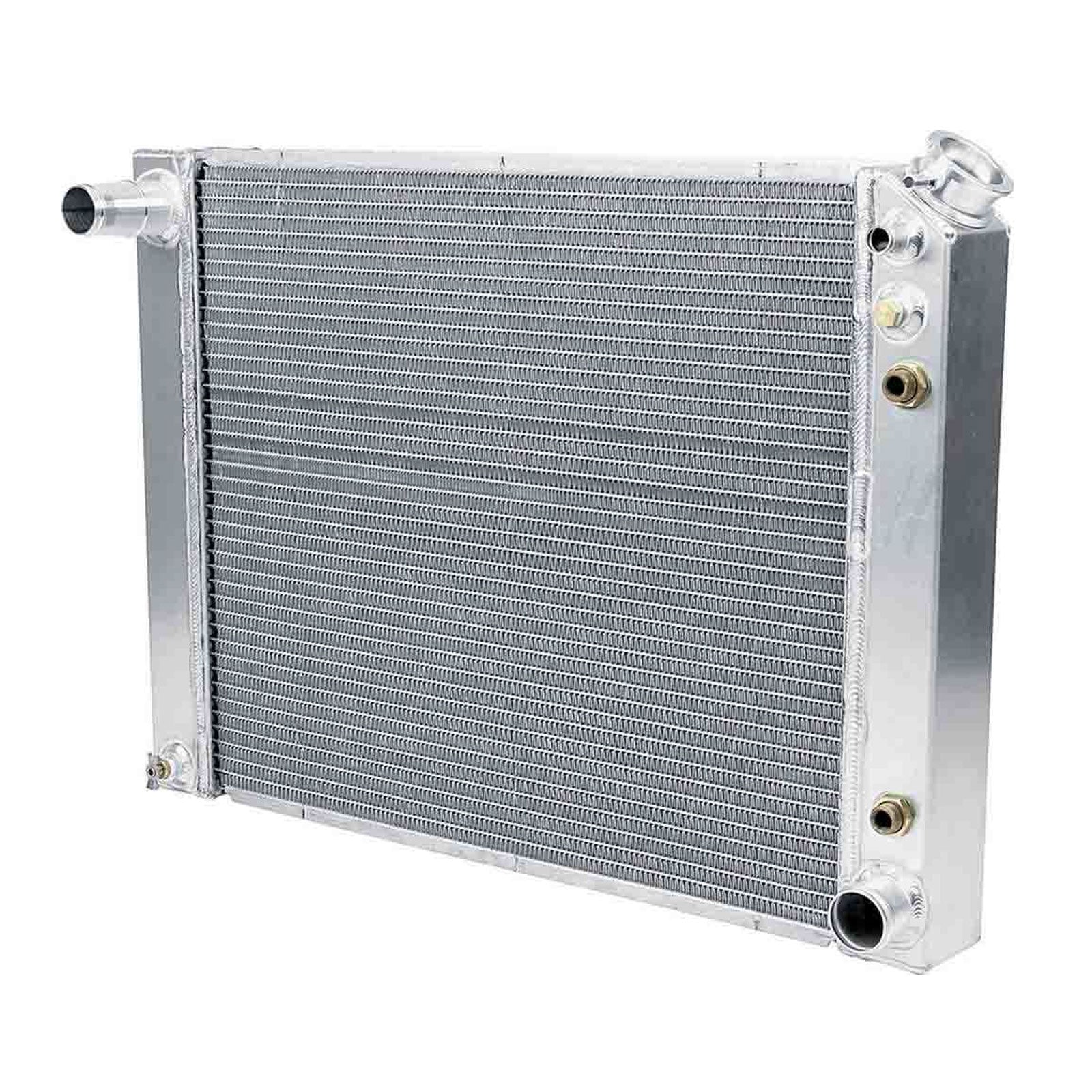

ALL30301.........1970-81 GM F-Body (Camaro and Firebird) PS Outlet, DS Inlet, 26"W x 19-1/2"H overall, 20-1/2"W x 18"H core

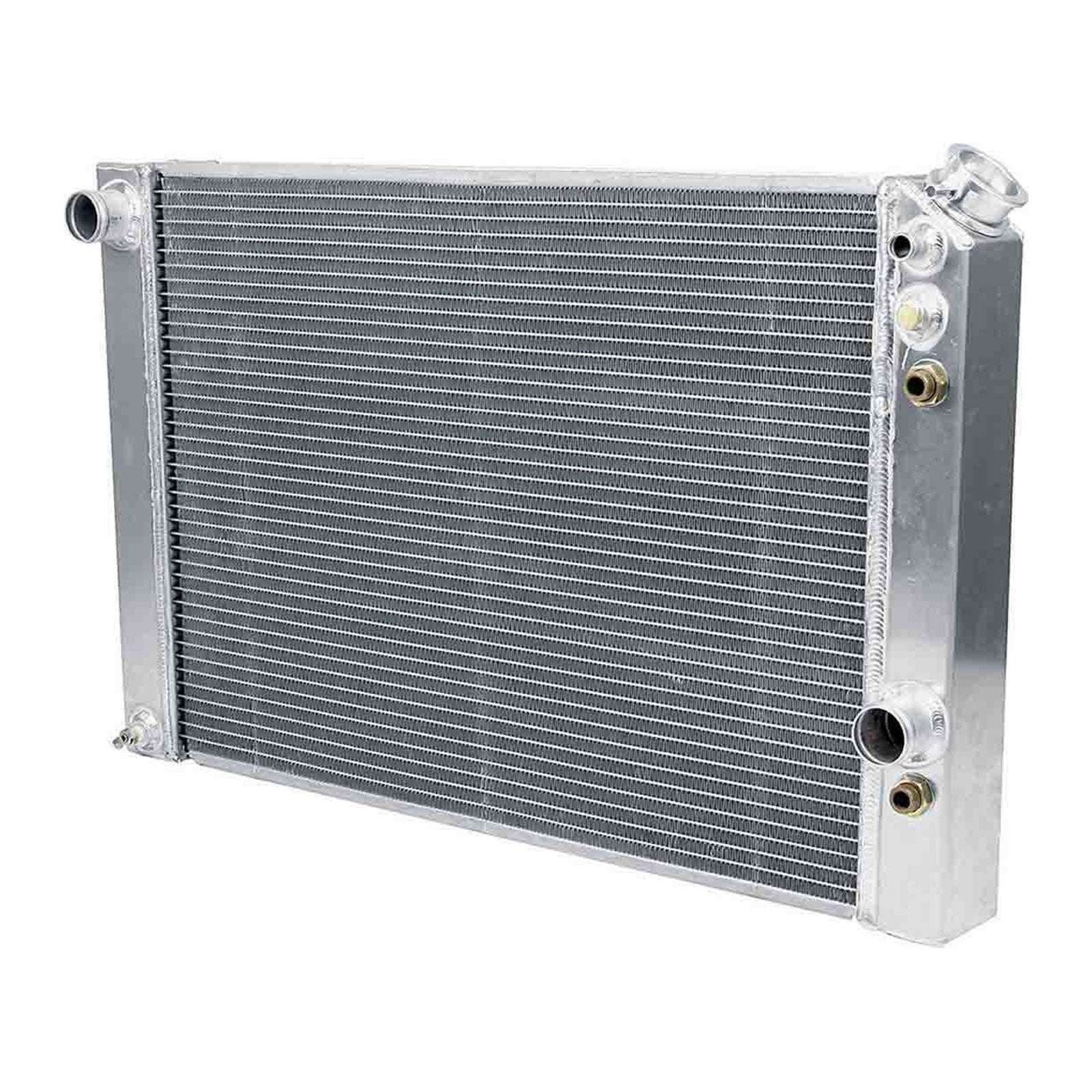

ALL30302.........1982-92 GM F-Body (Camaro and Firebird) PS Outlet, DS Inlet, 30"W x 19-1/2"H overall, 24-1/2"W x 18"H core
Product Note: THESE RADIATORS EQUIPPED WITH 1/4 NPT TRANSMISSION COOLER FITTINGS, ALL50129 FITTINGS ARE REQUIRED TO CONVERT TO 5/16 INVERTED FLARE FITTINGS.
