1955-57 Chevy Aluminum Radiator

In stock
SKU: ALL30006
Regular price $379.99

Product details

  • Vendor Allstar
  • SKU ALL30006
  • Category Cooling & Heating
  • Item Type Aluminum Retro-Fit

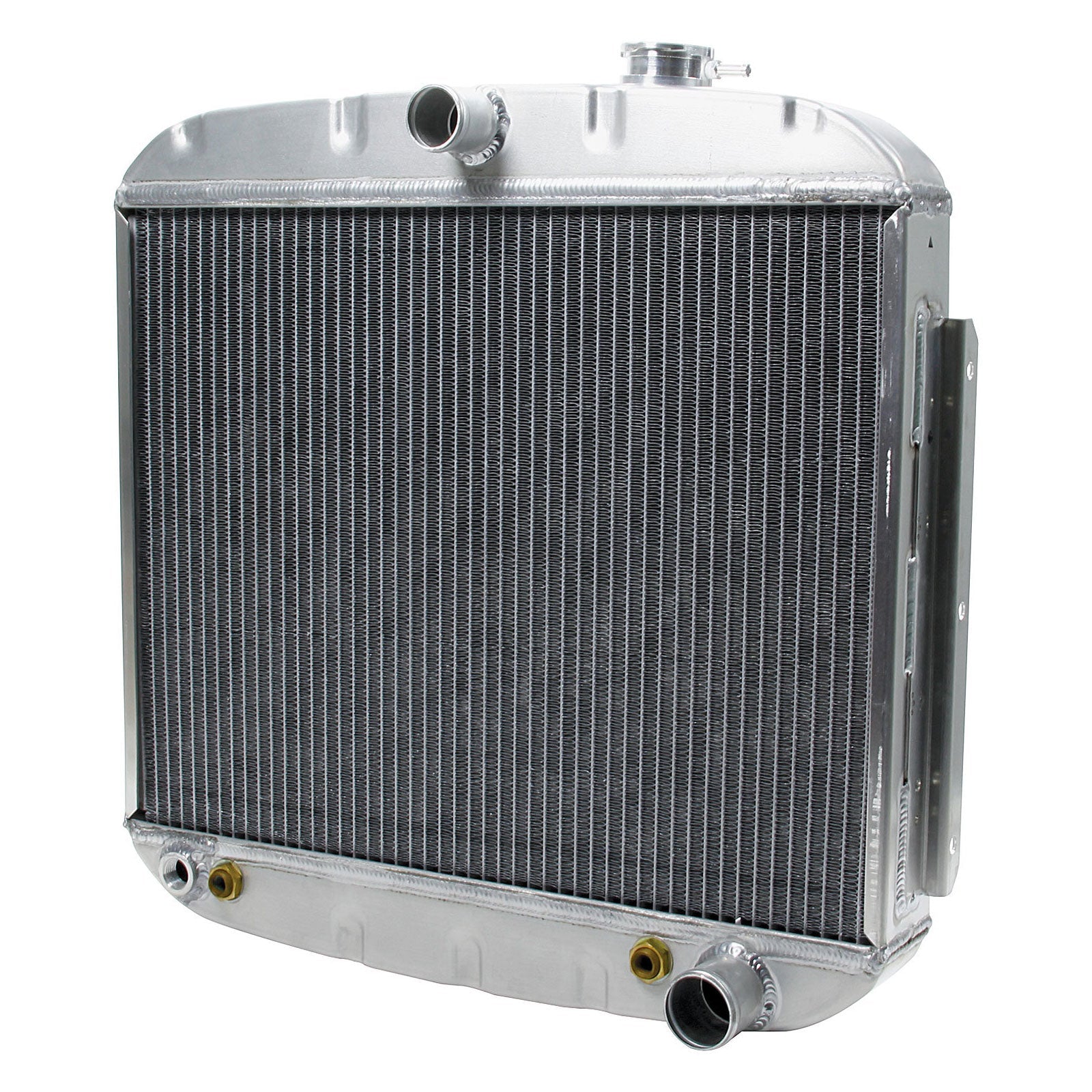

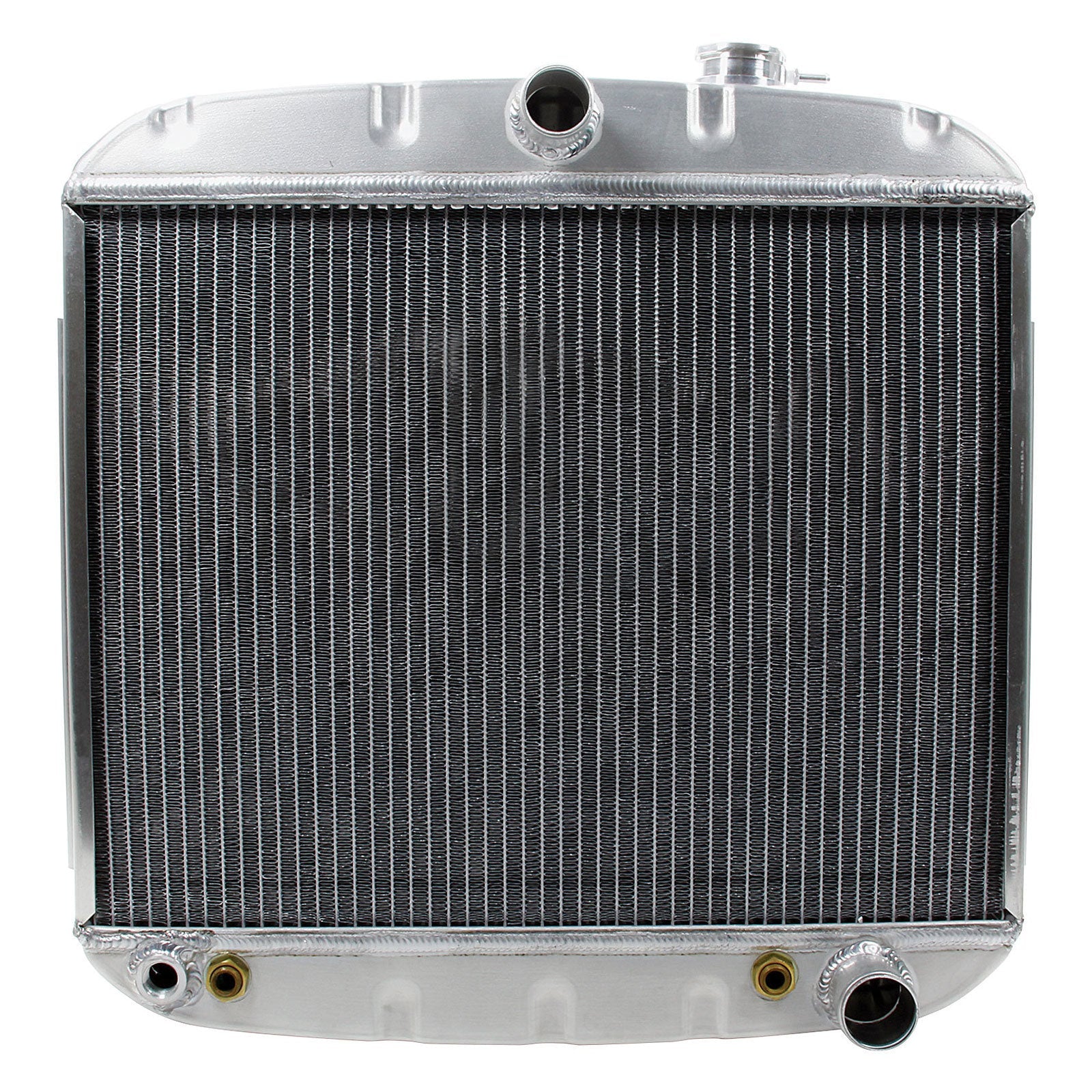

A direct replacement radiator for all 1955-57 Chevy passenger cars with a V-8 engine using a short style water pump. Radiator has mounting brackets that position it behind the core support bar, two rows of 1" tubes, furnace brazed tanks, a machined billet filler neck with overflow fitting, drain petcock, 1/2" NPT bung for additional temperature sender/switch and mounting clips. The built-in automatic transmission cooler has 1/4" NPT fittings. 23"H x 24-1/2"W. Core width is 22".

Product Note: THIS RADIATOR HAS MOUNTS WELDED-ON FOR APPLICATIONS ORIGINALLY EQUIPPED WITH A V-8 AND A SHORT WATER PUMP. THESE MOUNTS PLACE THE RADIATOR TOWARDS THE BACK OF THE RADIATOR SUPPORT (CLOSER TO THE ENGINE) WHICH MAY CAUSE FAN CLEARANCE PROBLEMS. USE ALL30005 FOR V-8'S WITH LONG WATER PUMPS. OVERALL SIZE IS 23.25 X 23.25 (INCLUDING THE FILLER NECK) CORE WIDTH IS 22 1/4 NPT TRANSMISSION LINE FITTINGS 1/2 NPT HEATER HOSE FITTING 1-1/2 INLET(UPPER), 1-3/4 OUTLET(LOWER)
