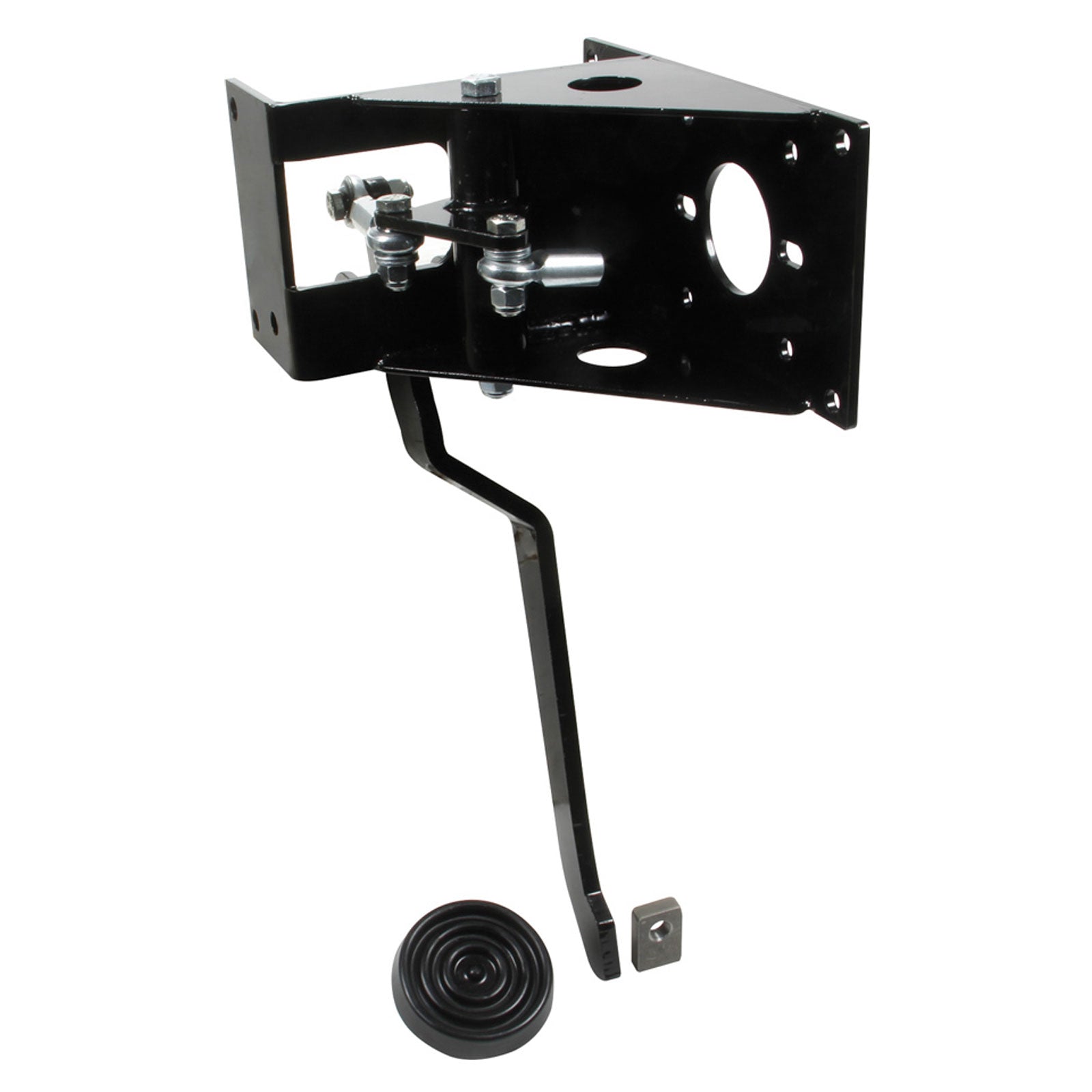

Universal pedal mount positions the booster and master cylinder under the dash 90 degrees to the firewall for a clean under hood appearance and is ideal for vehicles that simply do not have room in the engine compartment for a booster or master cylinder. Bracket has provisions to accept Allstar power brake boosters or to mount a master cylinder directly to the bracket for manual brake applications. Welding required to mount pedal tab to pedal.
Product Note:
PEDAL ASSEMBLY HAS TWO OPTIONAL LINKAGE HOLES ON THE PEDAL ARM ALLOWING A 5:1 OR 7:1 RATIO. MOUNTING PLATE HAS PROVISIONS TO MOUNT AN ALLSTAR POWER BRAKE BOOSTER WITH 3-3/8" X 3-3/8" MOUNTING PATTERN OR A STANDARD MASTER CYLINDER WITH 3-1/4 TO 3-1/2" CTC BOLT PATTERN. PEDAL ARM MEASURES 15" FROM CENTER OF PIVOT TO END OR BOTTOM OF ARM. ARM MAY BE CUT TO LENGTH AND TAB INSTALLED AS NEEDED.
