1955-56 Chevy Aluminum Radiator

In stock
SKU: ALL30005
Regular price $379.99

Product details

  • Vendor Allstar
  • SKU ALL30005
  • Category Cooling & Heating
  • Item Type Aluminum Retro-Fit

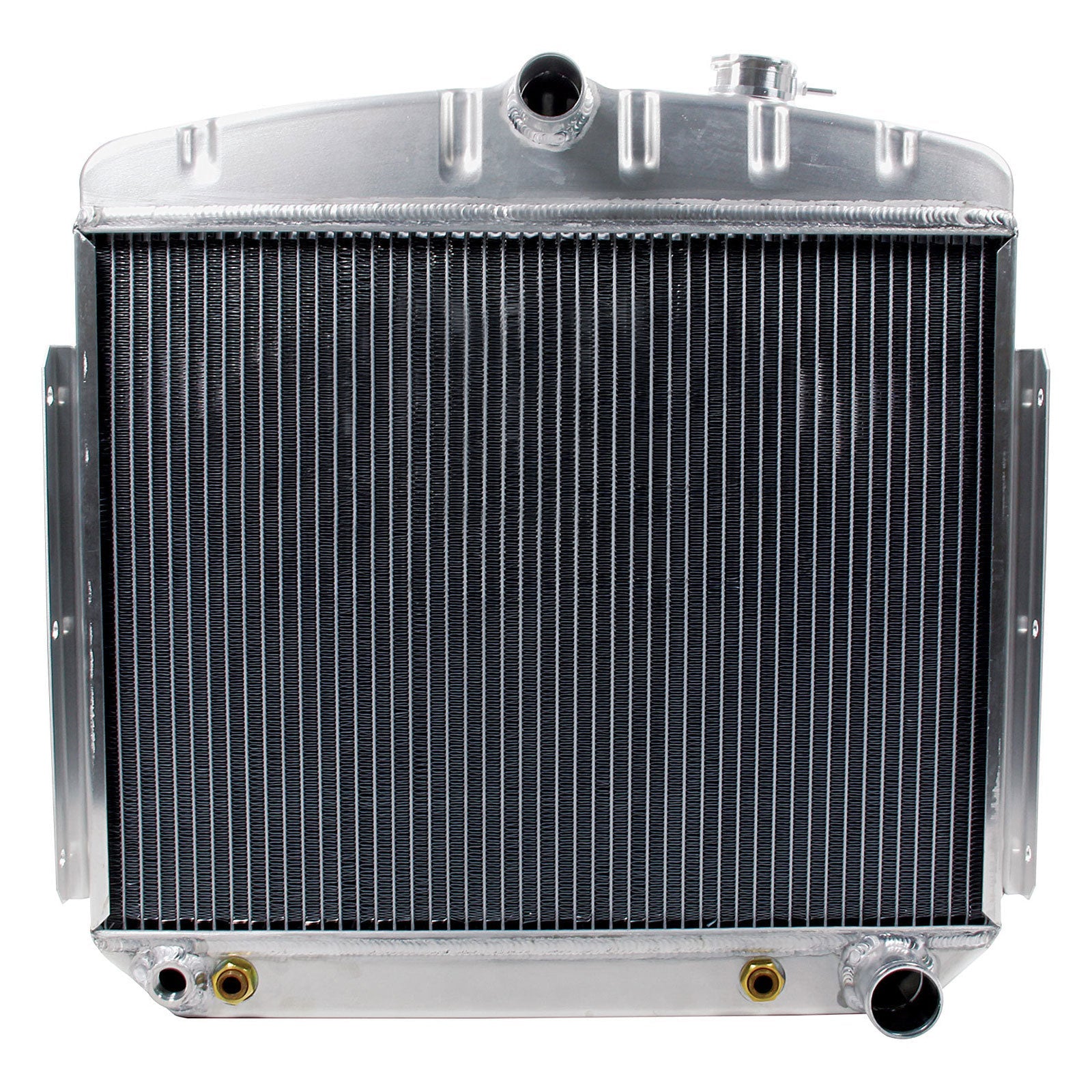

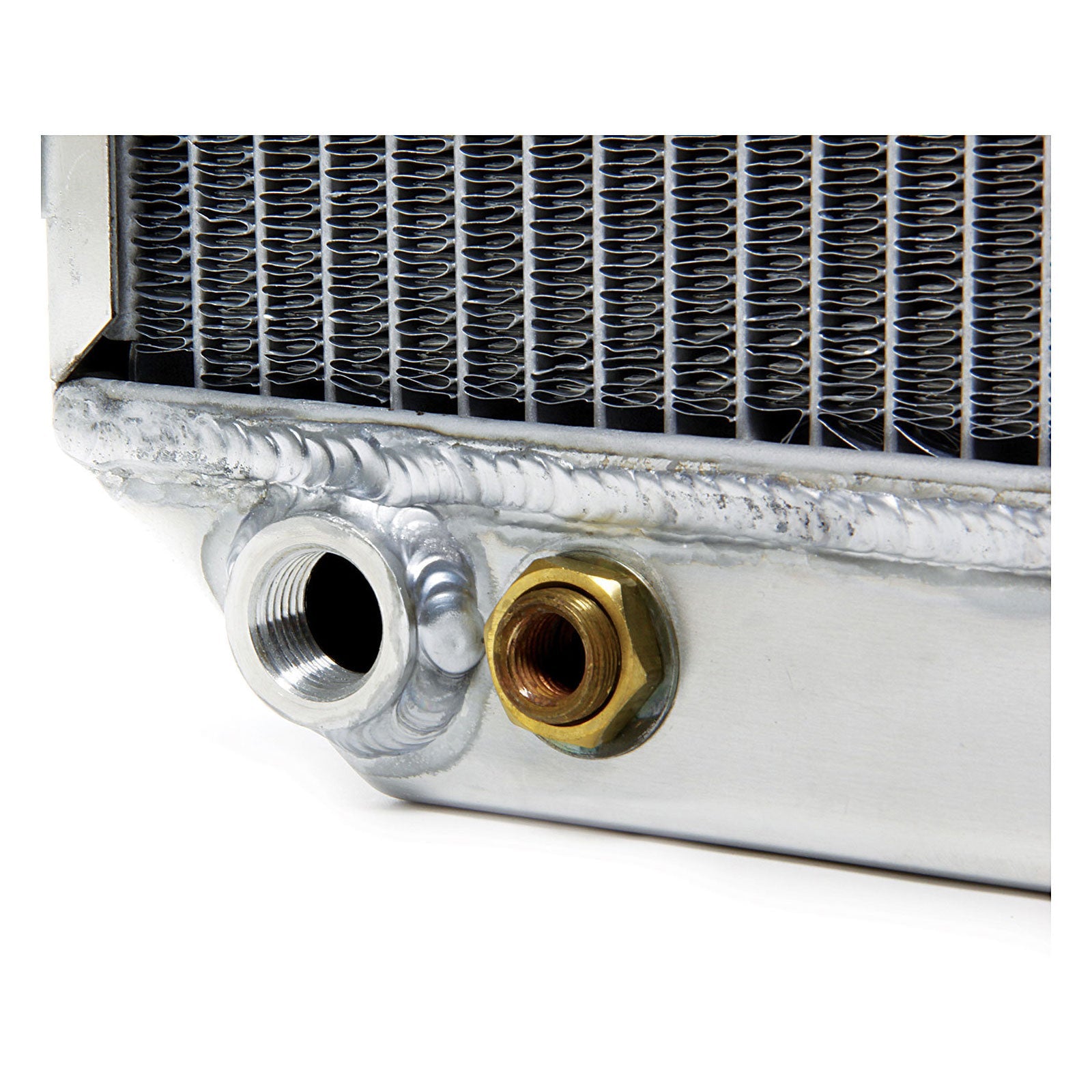

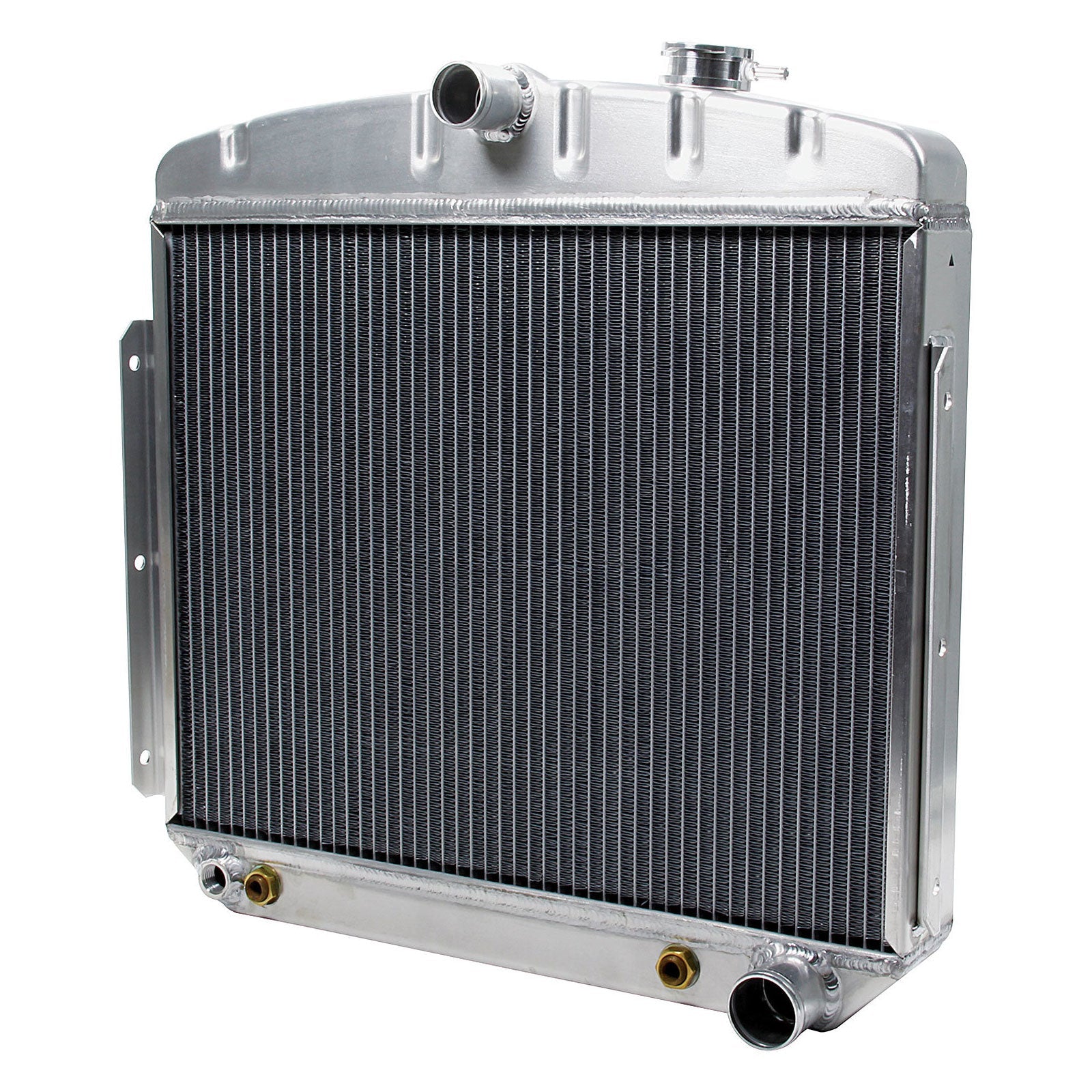

A direct replacement for all 1955-56 Chevy passenger cars with six cylinder engines, also ideal for 1955-57 Chevy V8’s with long style water pumps. Radiator has mounting brackets that position it in front of the core support bar, two rows of 1" tubes, furnace brazed tanks, a machined billet filler neck with over flow fitting, drain petcock, 1/2"NPT bung for additional temperature sender/switch and mounting clips. The built-in automatic transmission cooler has 1/4"NPT fittings. 23-1/4"H x 23-1/4"W. Core width is 22".

Product Note: THIS RADIATOR HAS MOUNTS WELDED-ON FOR APPLICATIONS ORIGINALLY EQUIPPED WITH A 6-CYLINDER. THESE MOUNTS PLACE THE RADIATOR FARTHER FORWARD IN THE RADIATOR SUPPORT PROVIDING MORE ROOM FOR A V-8 WITH A LONG STYLE WATER PUMP. OVERALL SIZE IS 23.25 X 23.25 CORE WIDTH IS 22/ CORE HEIGHT 16.50 1/4 NPT TRANSMISSION LINE FITTINGS 1/2 NPT HEATER HOSE FITTING 1-1/2 INLET(UPPER), 1-3/4 OUTLET(LOWER) MOUNTING CLIPS THREAD SIZE: 8MM X 1.25
